WL460B Rabar Tying Tool

Short Description:

The WL460 is the cutting edge rebar tying tool. It is lightweight and has a conservative, simple to hold, glove-friendly grip. The device is balanced and is intended to tie rebars as quick as you can pull the trigger. The long-life battery will give you 4600 ties on a single charge. We incorporate an additional battery that can be charging when the tool is being used. This device will wave you time and cash.


Product Detail

Product Tags

WL460 Rebar Tying Tools

The WL460 is the cutting edge rebar tying tool. It is lightweight and has a conservative, simple to hold, glove-friendly grip. The device is balanced and is intended to tie rebars as quick as you can pull the trigger. The long-life battery will give you 4600 ties on a single charge. We incorporate an additional battery that can be charging when the tool is being used. This device will wave you time and cash.

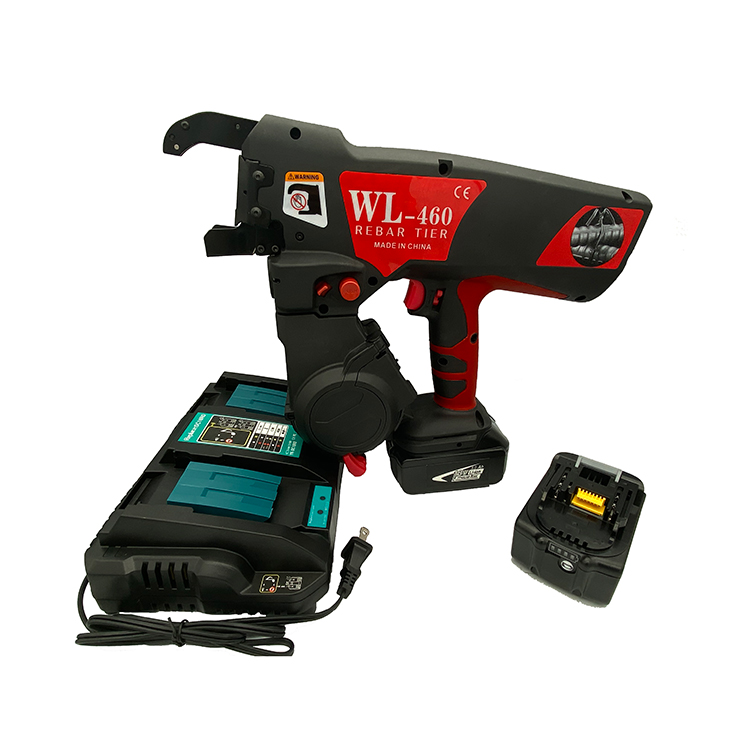

WL460-(4)

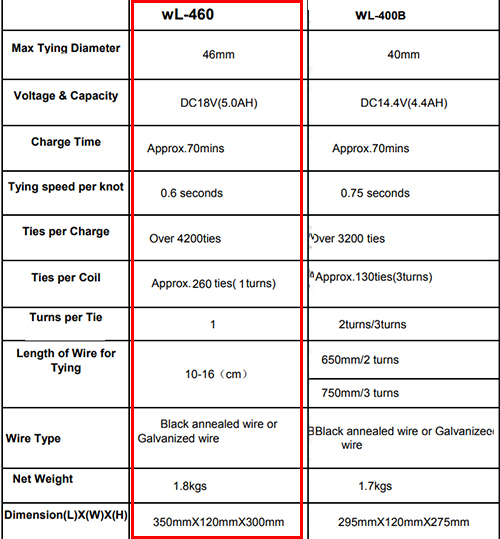

WL400B-5

Features

Rapid Speed
Dual Wire Feeding System increase efficiency.

Money Saving
Wire Pull-Back Mechanism gives the exact measure of wire required to shape a tie, cutting down wire use.

Limited Tie Height
A Wire Bending Mechanism creates a more limited tie height. Less concrete is required to completely cover a wire tie

Wide Range
Large jaw enables the tool to tie from 10mm x 10mm(#3 x#3) to 25mm x 19mm( #7 x #7) rebar.

Long Battery Life
Up to 4,600 ties at one single charge

Twintier (CE Approval)

Model No. WL-460(Li-ino)
Max Tying Diameter 46mm
Voltage & Capacity DC18V(5.0AH)
Charge Time Approx.70mins
Tying speed per knot 0.6 seconds
Ties per Charge Over 4600 ties
Ties per Coil Approx.260ties(1turns)
Length of Wire for Tying 10-16cm
Net Weight 1.8kgs
Dimension(L)X(W)X(H) 350mmX120mmX300mm

Packing Info.

WL400B-(2)

One set including:
. 1Pc Rebar tier machine
. 2Pc Battery pack
. 1Pc Quick charger
. 2Pcs of steel wire rolls
. 1PcSpecification
. 1pc of Inner Hexagon Spanner
. 1pc of Sharp Nose Pliers
Inner case Size: 54×40×13cm
Carton size for 3sets: 56×43×40cm
GW of one set: 7.5kg

Spare Parts for Rebar Tying Machine if you have extra needs.

Wire (Black annealed wire or Galvanized wire)
Model WL
Diameter 1.0mm
Material 55
Length 33m
Packing Info. 50pcs/carton box, 420*175*245(mm), 20.5KGS, 0.017CBM
2500pcs/pallet, 850*900*1380(mm),1000KGS, 0.94CBM
Battery
Model WL-4SX(Li-ion)
Voltage & Capacity DC 18V(5.0Ah)
Charge Time Approx. 70 minutes
Dimension(L)X(W)X(H) 115(L)*70(W)*75(H) (mm)
Net Weight 620g
Charger
Model WL-4A
Charger Voltage 110V-240V
Frequency 50/60HZ
Dimension(L)X(W)X(H) 256.1(L)* 168.68(W)* 80(H)(mm)
Net Weight 714g
