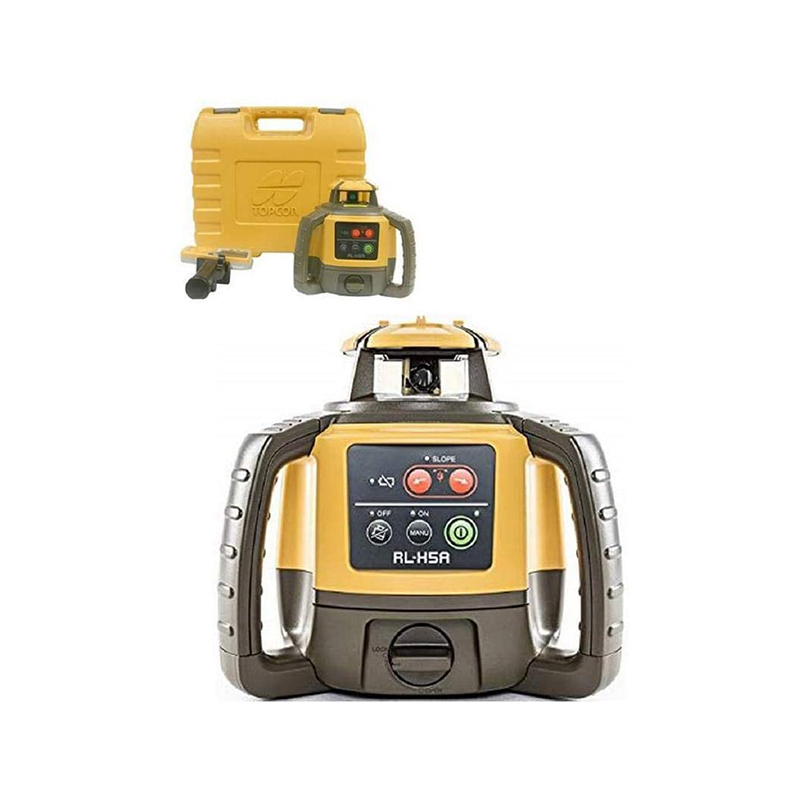

The Topcon RL-H5A Horizontal Self-Leveling Rotary Laser is a multi-purpose laser that is ideal for grading, excavating, site preparation, concrete works, and other general construction projects. With a laser receiver, it offers a long operating range that covers up to 2,600 feet in diameter. This laser level also offers an accuracy of up to ±1/16" or 1/8" at 100 feet and is self-leveling within ±5 degrees. For added precision and accuracy, the RL-H5A features a manual single-axis leveling method, which allows you to match existing single slopes, and rotates 600 times per minute while the self-leveling of the cross-axis provides out of level protection for the opposite axis. The RL-H5A transmitter sends a continuous self-leveled 360-degree laser reference over your entire work area, allowing you to work longer from each setup with greater accuracy. This horizontal rotating laser is simple to use, intuitive and re-levels itself immediately if the device is disturbed on the job. Just turn it on and in seconds you’re working. With an IP66 rating, the Topcon RL-H5 series is protected from dust and low-pressure water jets
● Range up to 2,600 ft. with LS-80L receiver
● Accuracy 1/16 in. at 100 ft.
● Dimensions 6.77 in. L x 8.31 in. W x 8.07 in. H
● Self-leveling within 5°
● Rotation speed 600 RPM
● Manual single-axis leveling
● Re-levels immediately if disturbed
● IP66 dustproof and water resistant
● Comes with LS-80L receiver
● Up to 100-hours battery life
● Multi-purpose laser
● 5.07 lbs.
● 5-years Topcon manufacturer warranty
Product Depth (in.): 8.31 in
Product Height (in.): 8.07 in
Product Length (in.): 6.77 in
Product Width (in.): 6.77 in
Battery Type Required: D
Compatible Battery Type: C Batteries
Hand Tool Type: Laser Level
Included: No Additional Items Included
Indoor/Outdoor: Indoor, Outdoor
Laser Color: Red
Laser Level Mounting Method: Tripod
Max Laser Distance (ft.): 1000 ft.
Measurement Accuracy (in.): ±1/16 in.
Number of Batteries Required: 4
Number of beams: 1
Number of Measurements: 1
Tools Product Type: Hand Tool
Warranty / Certifications
Manufacturer Warranty: 1 year warranty
