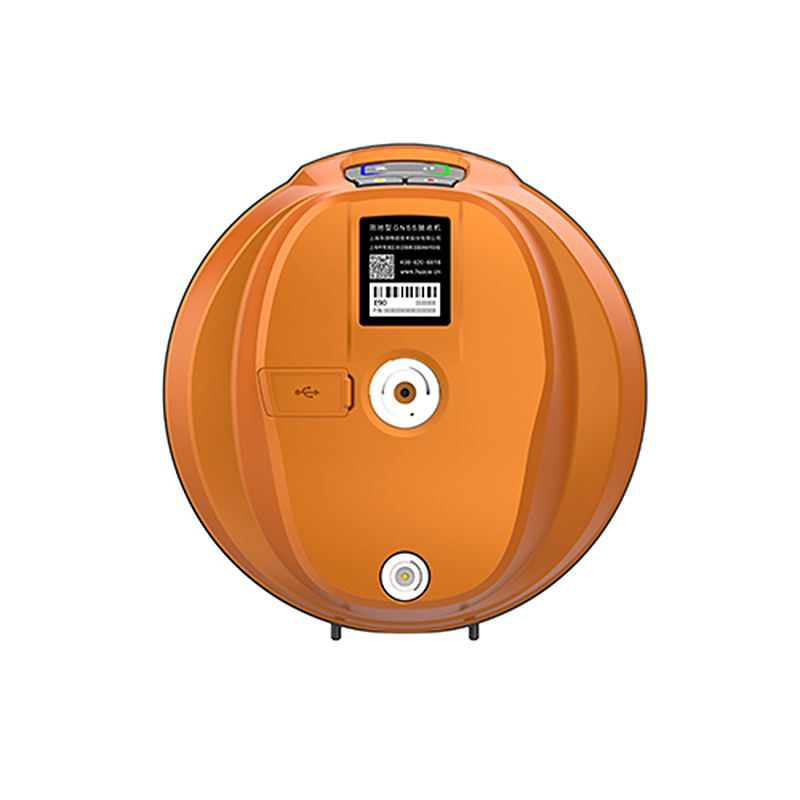

CHCNAV E90 RTK GNSS
E90 RTK GNSS
The GNSS RTK E90 is equipped with wifi and NFC connectivity for flexible connection of other peripherals.
All new CHCNav brand GNSS RTK models are equipped with multi-channel connectivity in addition to Bluetooth as the regular E90 models are equipped with NFC and wifi connectivity. makes it possible to connect additional peripheral devices such as handheld rangefinders, reverb depth meters without having to plug in wires like before.
The multi-connection feature allows the CHC E90 GNSS receiver to be connected to the rangefinder to measure the intersection in the corners of the house without having to place the unit directly on the measuring point.
Technical Specification E90
| Content | Parameter | |
| Receiver characteristics | satellite tracking | 6GPS+BDS+Glonass+Galileo+QZSS, support the third generation of Beidou, support five-star sixteen frequency |
| number of channels | 624 channels | |
| operating system | LINUX operating system | |
| Initialization time① | <5s (typ.) | |
| Initialize reliability | >99.99% | |
| Receiver appearance | button | 1 dynamic/static switch key, 1 power key |
| indicator light | 1 differential signal light, 1 satellite light, 1 static data acquisition light, 1 power light | |
| Nominal accuracy② | static precision | Plane Accuracy: ±(2.5+ 0.5×10 -6 ×D) mm |
| Elevation accuracy: ±(5+0.5×1 0 -6 ×D) mm | ||
| RTK accuracy | Plane Accuracy: ±(8 + 1×1 0 -6 ×D) mm | |
| Elevation accuracy: ±(15+ 1×1 0 -6 ×D) mm | ||
| Stand-alone accuracy | 1.5m | |
| Code differential accuracy③ | Plane accuracy: ±(0.25 + 1×1 0 -6 ×D) m | |
| Elevation accuracy: ±(0.5+ 1×1 0 -6 ×D) m | ||
| Electrification parameters | Battery | Built-in 6800mAh lithium battery, support 15 hours battery life of mobile station |
| External power supply | Support external power supply via USB port | |
| Physical properties | size | 160mm*96mm |
| weight | 0.73kg | |
| Operating temperature | -45℃~+75℃ | |
| storage temperature | -55℃~+85℃ | |
| Waterproof and dustproof | IP68 class | |
| shock shock | IK08 class | |
| Anti-drop | Resist 2 meters free fall | |
| Data output | output format | NMEA 0183, binary code |
| output method | BT/Wi-Fi/Radio | |
| Static storage | storage format | Can directly record HCN, HRC, RINEX |
| storage | Standard 8GB built-in storage | |
| Download method | Universal USB data download; HTTP download | |
| Data communication | I/O interface | 1 external UHF antenna port |
| 1 USB-TypeC interface, support charging, power supply, data download | ||
| network module | Handbook supports 4G full Netcom | |
| radio | Built-in high frequency 450-470MHz single receiver radio | |
| protocol | CTI protocol, transparent transmission, TT450 | |
| Bluetooth | BT4.0, backward compatible with BT2.x, compatible with Windows, Android, IOS systems | |
| Wi-Fi | 802.11 b/g/n | |
| NFC | Support NFC flash connection | |
| Receiver function | multithreaded storage | The receiver can record 4 threads of static data at the same time |
| Handbook parameters | model | HCE320 |
| The internet | 4G full Netcom (Mobile Unicom Telecom 2G/3G/4G) | |
| operating system | Android 7.1 | |
| CPU | Octa-core ultra-fast processor | |
| RAM+ROM | 2GB+16GB | |
| LCD screen | 5.5-inch AMOLED self-luminous display | |
| physical buttons | full function button | |
| Input | CTI independent input method | |
| Camera | 800W | |
| Battery | 8000mAh | |
| Three defenses | IP68 | |
| electric stylus | support |
