12mm 1220×200mm AC5 / Class 33 Waterproof Laminate Flooring with Wax-Sealed Edges
Product Description
Designed for distributors, wholesalers and project contractors, this 12mm 1220×200mm AC5 waterproof laminate flooring combines a substantial 12mm construction with a practical plank format for demanding residential and commercial programs. Its Class 33 performance and customizable wood-look decors make it suitable for project supply, branded collections and private-label programs. Explore the Voyage Waterproof Laminate Flooring range.

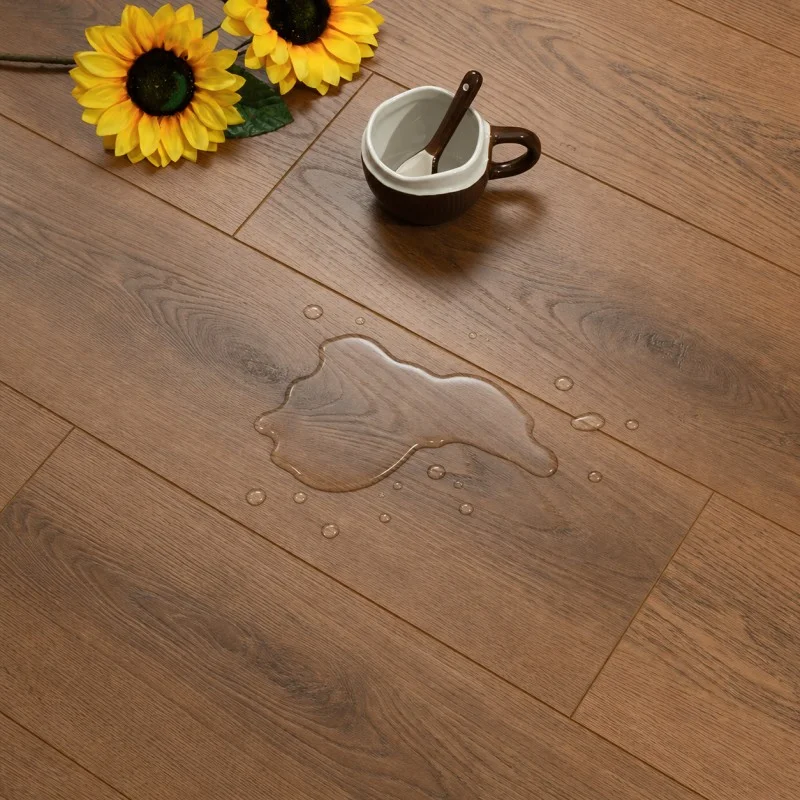

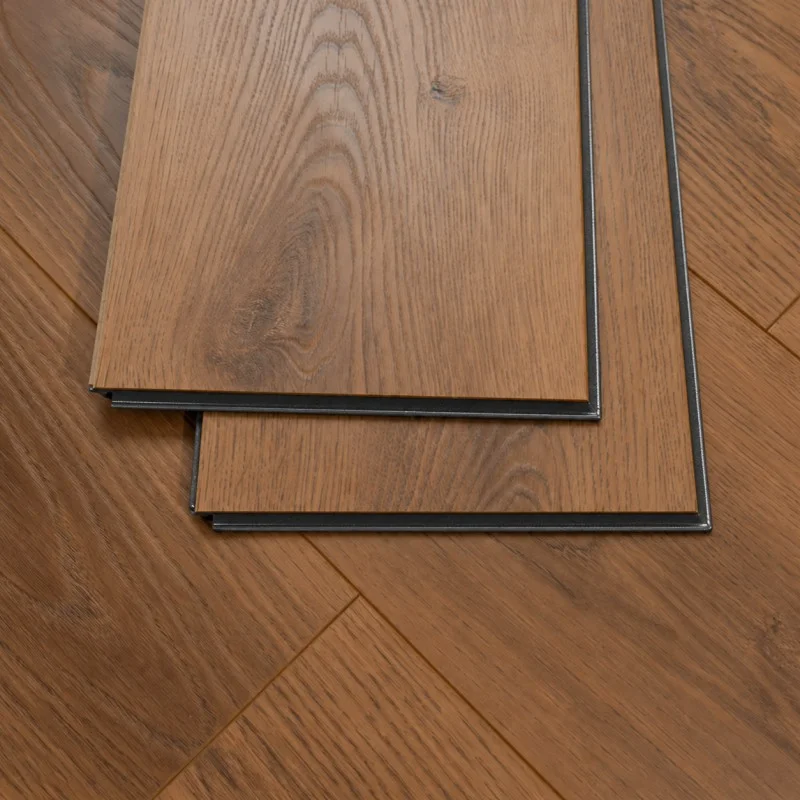

Wax is applied to the machined tongue-and-groove edges to create an additional moisture barrier at the plank joints. Combined with a selected moisture-resistant HDF core and a precision click-lock profile, the wax-sealed edge treatment helps reduce topical moisture penetration and the risk of edge swelling. Correct installation, dry subfloor conditions and prompt spill cleanup remain important for finished-floor performance.
Available OEM and ODM options include decor, surface texture, bevel profile, click system, emission level, backing and private-label packaging, allowing the product to be adapted for different distributor programs and project requirements.
Key Advantages for Buyers
1. Wax-Sealed Edge Protection
Wax applied around the tongue-and-groove profile helps limit topical moisture entry at the most vulnerable plank connections.
2. AC5 Abrasion Resistance & Class 33
With AC5 abrasion resistance and a Class 33 use classification, this flooring is designed for high-traffic residential and commercial interiors.
3. Substantial 12mm Construction
A firmer plank feel and stronger premium positioning than standard thinner laminate-flooring specifications.
4. Flexible Formaldehyde Emission Options
E1, E0 and E05 formaldehyde-emission options are available for different market and project requirements, with supporting test documentation provided for the selected specification.
5. Configurable Moisture Performance
Core construction, edge treatment, click profile and test basis can be aligned with the target market and application.
6. Distributor-Focused OEM
Flexible decor, surface, bevel, click system, carton artwork, labels, barcodes and sales-support materials.
Specifications
| Attribute | Detail | Standard Reference |
| Product Type | AC5 waterproof laminate flooring with wax-sealed edges | EN 13329 |
| Dimensions | 1220 × 200 × 12 mm | EN 13329 |
| Abrasion Rating | AC5 surface-abrasion performance | EN 13329 |
| Use Class | Class 33 – designed for high-traffic commercial and demanding residential applications | EN 13329 |
| Core Material | Selected moisture-resistant high-density HDF; density ≥ 880 kg/m³ or project-specific | EN 323 |
| Decor & Surface | Custom wood-look decors; embossed textures, matte finishes and high-gloss options | |
| Edge Treatment | Wax-sealed tongue-and-groove edges; application on four sides subject to order | |
| Click System | Unilin / Välinge / single-click / double-click options subject to order and licensing | |
| Emission | E05 / E1 / E0 Optional | EN 717-1 |
| Documentation | CE and market-specific testing available according to the approved configuration | |
| MOQ | From 300 m²; final MOQ depends on decor, edge treatment and packaging | |
| Production Capacity | Reference capacity: 100,000 m²/month | |
| Lead Time | Approx. 30 days per container order after specification and artwork approval | |
| OEM / ODM | Decor, surface, edge treatment, bevel, click, backing, carton, label and barcode customization |
Beyond the above specifications, we offer comprehensive customization for thickness, size, wear rating, core density, and surface texture based on your specific project needs.
Packing Details
| Laminate flooring with pallets | ||||||
| Size | Pcs/Carton | Sqm/Carton | Cartons/Pallet | Pallet/20'GP | Cartons/20'GP | Sqm/20'GP |
| 1220*200*12mm | 10 | 2.44 | 45 | 20 | 900 | 2196 |
| Laminate flooring without pallets | ||||
| Size | Pcs/Carton | Sqm/Carton | Cartons/20'GP | Sqm/20'GP |
| 1220*200*12mm | 10 | 2.44 | 950 | 2318 |
Applications

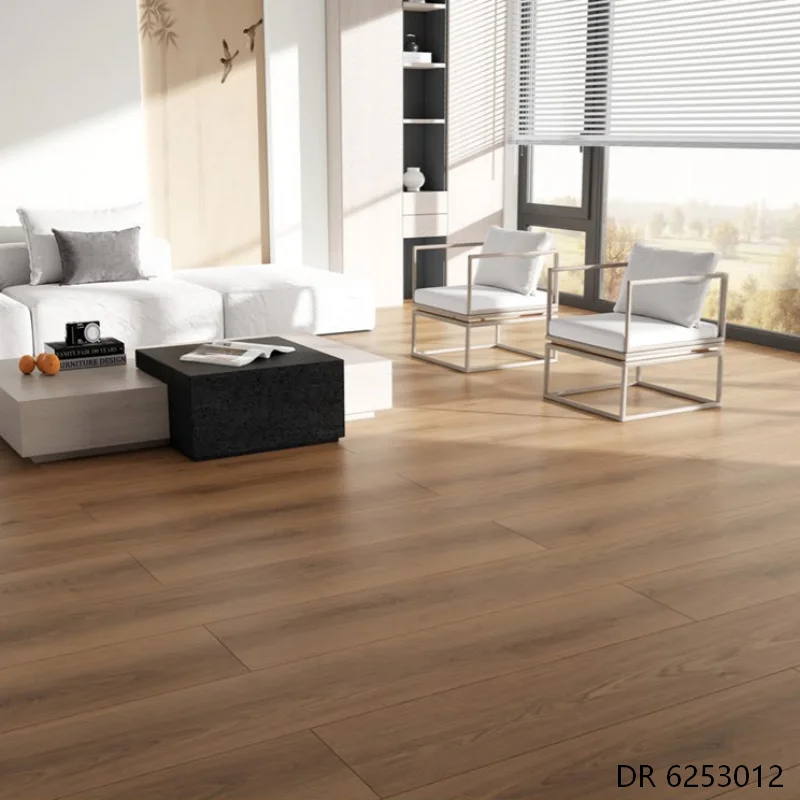

High-Traffic Residential & Multi-Family Projects
A strong option for apartments, rental portfolios, villas, living areas, hallways and other frequently used residential zones where buyers need 12mm construction, AC5 surface performance and improved protection against everyday spills.

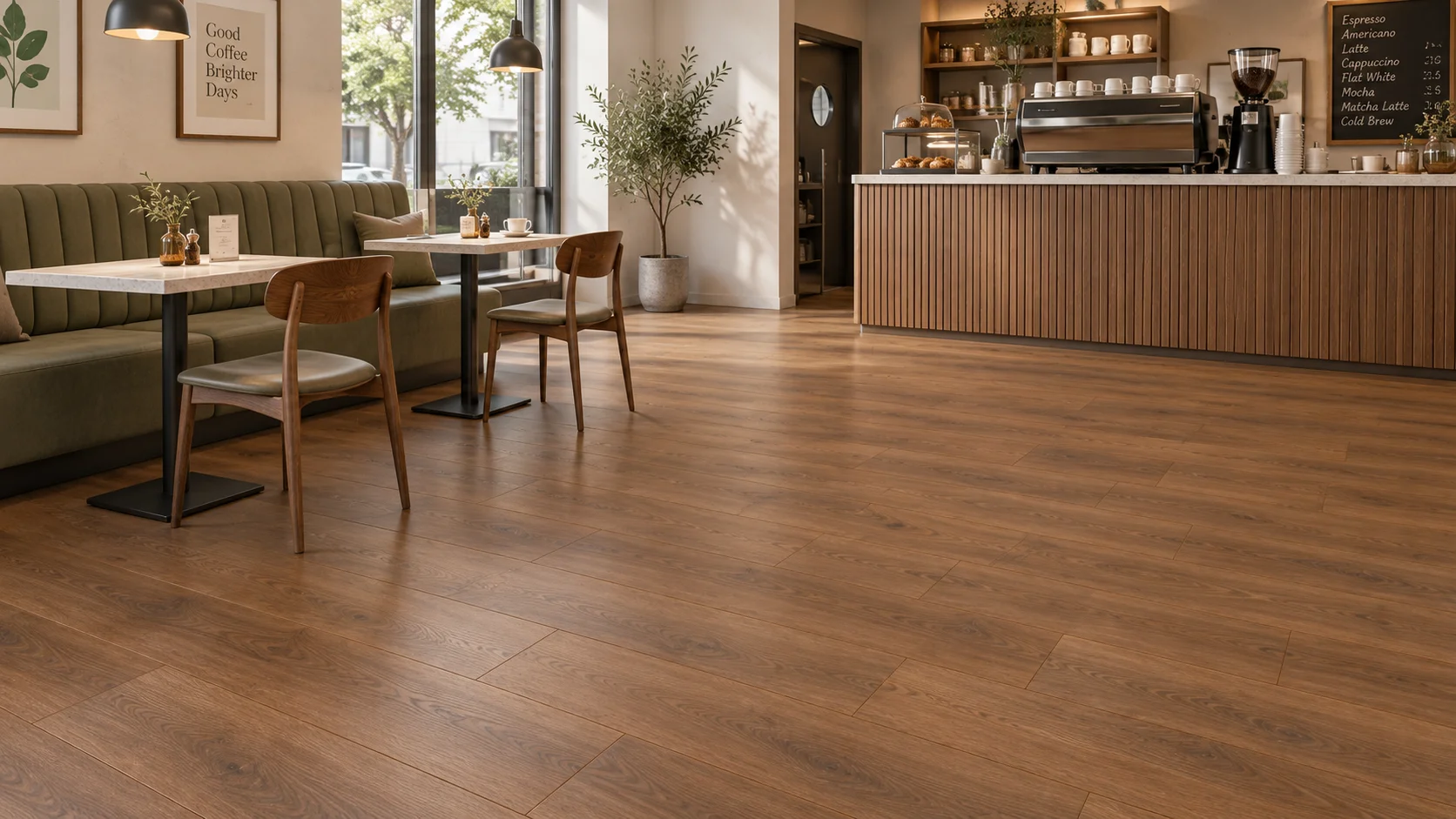

Selected Commercial Interiors
Suitable for offices, retail stores, hotel areas, showrooms and other demanding interiors when the approved use classification, moisture-performance evidence, installation system and maintenance plan match the project conditions.
Distributor & Private-Label Programs
The familiar 1220×200mm format, 12mm construction and wax-sealed-edge story make this product easy to position as a higher-performance laminate option. It can be coordinated with market-specific decors, labels, cartons, displays and sales materials.
B2B buyer guide: How to specify waterproof vs. water-resistant laminate flooring
OEM & Customization Service
We provide flexible OEM and private label solutions for flooring distributors, wholesalers and project contractors worldwide. With advanced manufacturing capabilities, we support customized laminate flooring solutions from product specifications to packaging.
Flexible Manufacturing Options
| Customization Item | Available Options |
| Product Series | Wood Grain, Stone Grain, Herringbone, Chevron, Custom Designs |
| Surface Treatment | 3D EIR Synchronized Embossing, Light Embossing, Medium Embossing, Matte Finish, Smooth Finish, High Gloss Finish, UV Lacquer Coating, Crystal Surface Finish |
| Wear Rating | AC3 (Class 31), AC4 (Class 32), AC5 (Class 33), AC6 (Class 34) |
| Core Material | High Density HDF, Medium Density MDF, Water-Resistant HDF Core |
| Thickness | 7mm / 8mm / 10mm / 11mm / 12mm or Customized |
| Dimensions | 1220×200mm, 1216×405mm, 1220×300mm, 606×101mm, 600×600mm, 806×403mm or Customized |

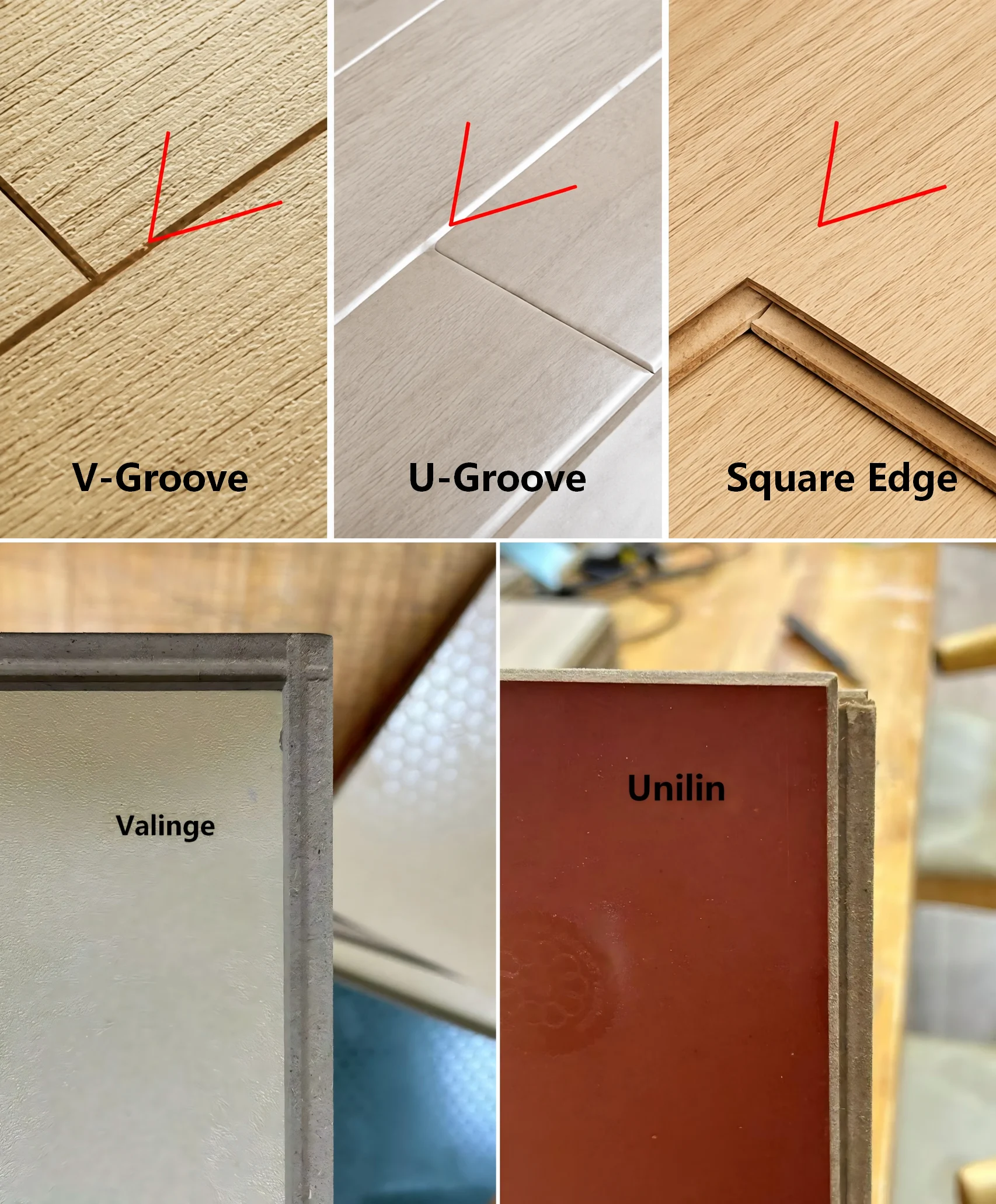

| Click System | Unilin Click, Valinge Click, Single Lock, Double Lock Systems |
| Groove Type | U-Groove, V-Groove (Beveled Edge), Square Edge |
| Wax Treatment | Edge Wax Sealing Available |
| Eco Standard | E0, E1, E2, CARB P2, E05 Available |
| Certificates | CE, EPA, SGS and Market-Specific Testing Available |
Private Label & Branding Support
We help customers build their own flooring brands with:
- Customized product labels
- Brand logo printing
- Customized carton design
- Product identification stickers
- Barcode and market-specific labeling

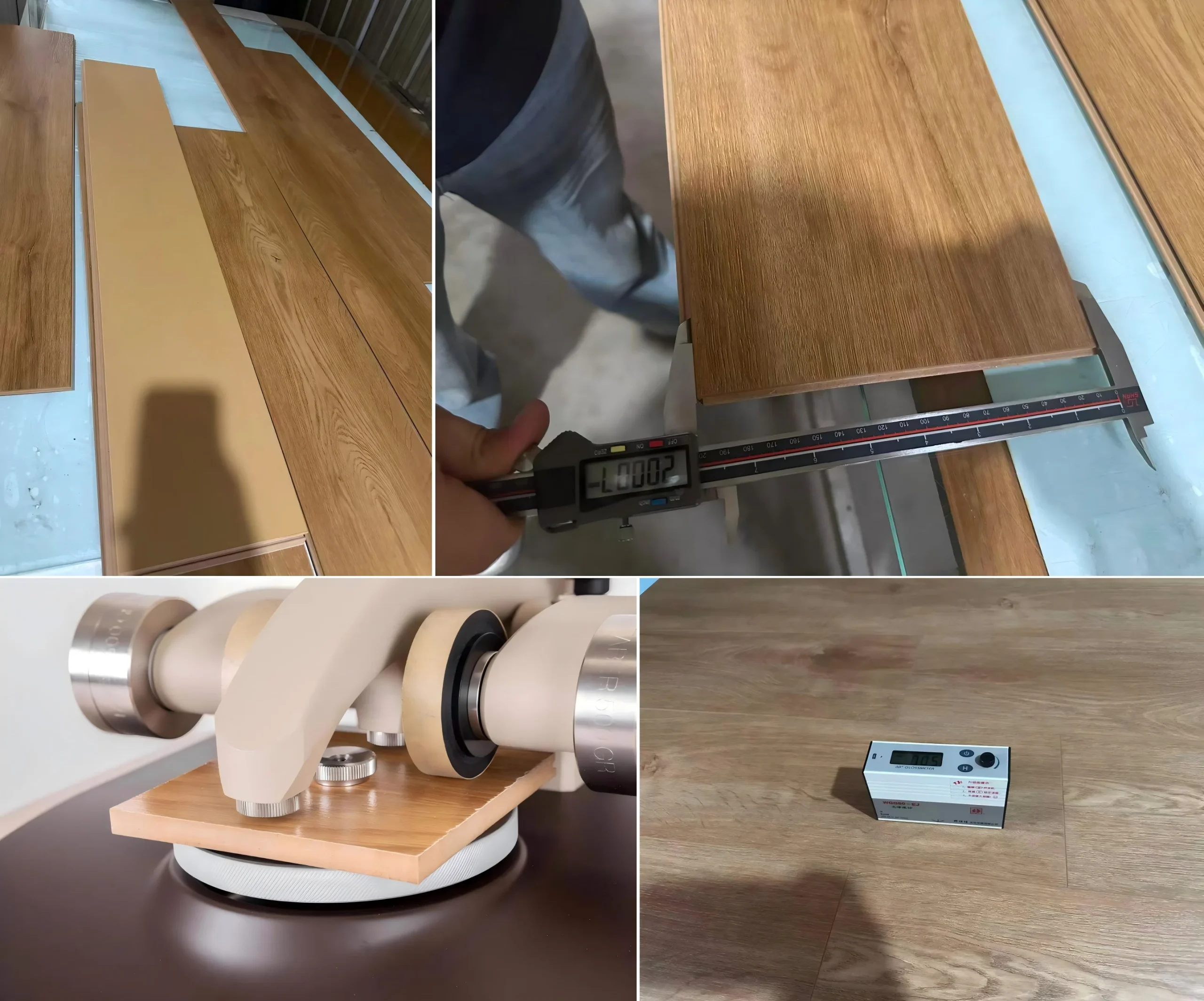

Quality Control
We implement strict quality inspections throughout the production process to ensure consistent laminate flooring quality for global markets.
Our quality control covers:
- Raw material inspection
- Precision dimension checking
- Surface and click system inspection
- Abrasion and performance testing
- Final product inspection before shipment
Each production batch is carefully checked to ensure stable quality and reliable performance.

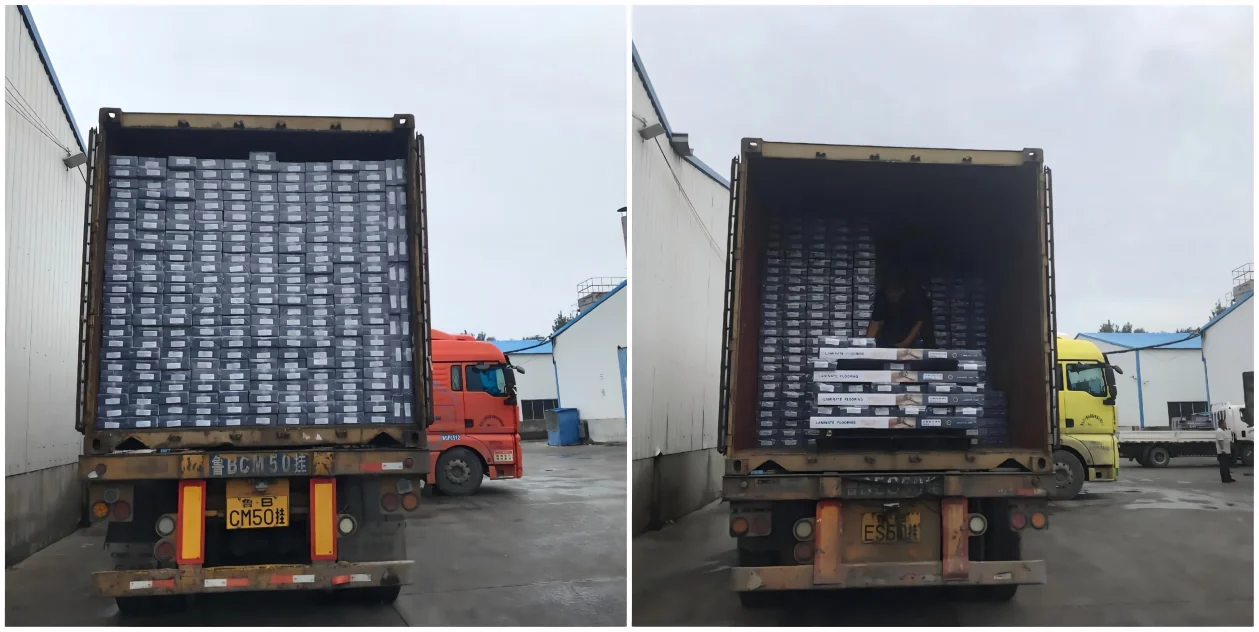

Packing & Loading
We provide professional export packaging solutions to ensure laminate flooring arrives safely during international transportation.
Our packaging includes:
- Strong export cartons
- Customized labels and packaging
- Pallet packing options
- Optimized container loading
Request a Sample & Get Wholesale Pricing
Send your target market, quantity, preferred decor, required moisture claim and test basis, edge-sealing configuration, click system, bevel, emission requirement and packaging plan. Voyage will confirm the sample arrangement, supporting documents, MOQ, lead time, loading plan and current quotation.
Ready to discuss your program? Contact Voyage
